Phase Splitter with 741 (CB25930E)

Details
Written by: Newton C. Braga

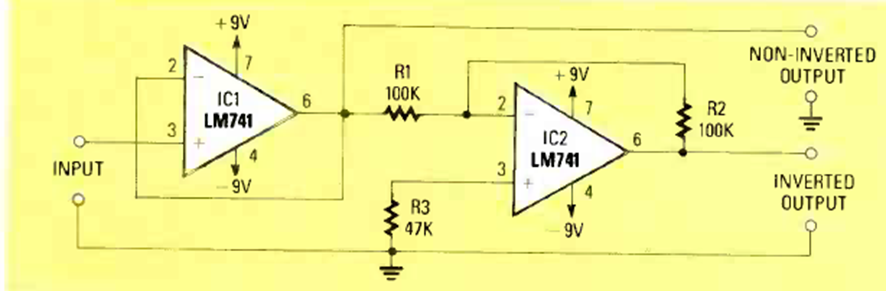

This circuit obtains phase-inverted signals from a single signal. The circuit uses two LM741 integrated circuits and requires a symmetrical power supply.
