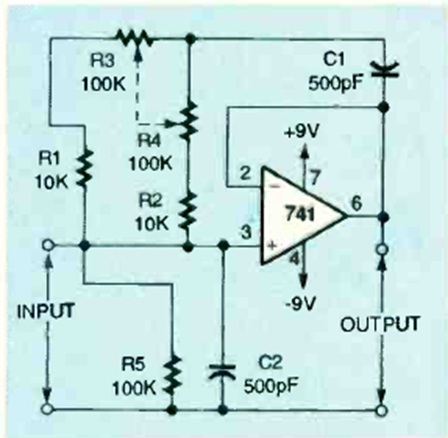

This 2.2 Hz to 24 kHz filter was found in the February 1995 issue of Electronics Now magazine. The circuit requires a dual power supply and supports other operational amplifiers.
Variable Low Pass Filter (CB25822E)
- Details
- Written by: Newton C. Braga
