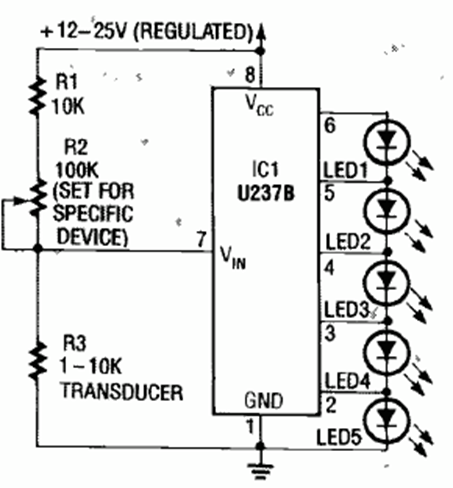

This circuit with a component from the time was found in the Radio Electronics magazine of February 1992. The transducer is resistive, and the adjustment is made in the trimpot R2.
LED Scale Transducer U237B (CB25441E)
