Wireless Microphone (CB25550E)

Details
Written by: Newton C. Braga

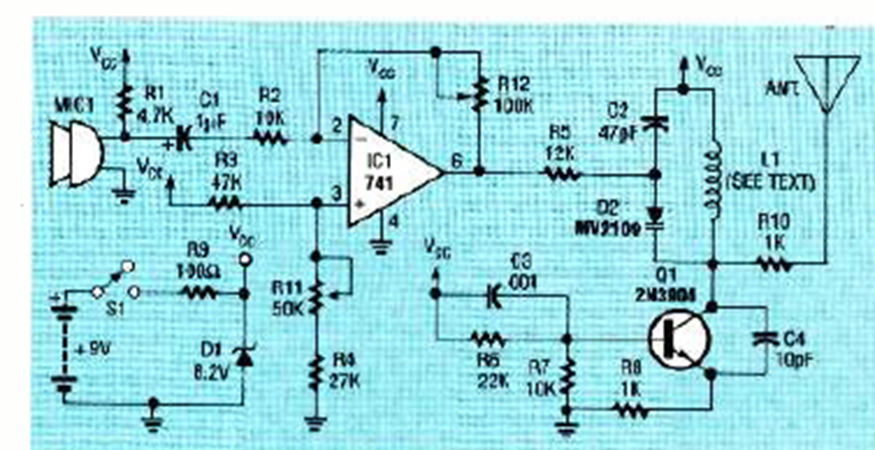

Designed to operate with a video camera, this small transmitter was found in the February 1993 issue of Radio Electronics magazine. The microphone is electret.




| Clique na imagem para ampliar |
