This circuit was found in the February 1993 Radio Electronics magazine. The frequency depends on the crystal and R2 adjusts the sweet spot of oscillation.
| Clique na imagem para ampliar |

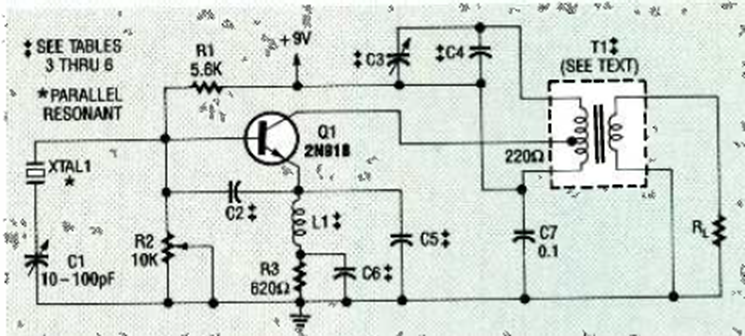

Semi-isolated Collpits oscillator with parallel crystal (CB25555E)
