Divider by 17 with the 4017 (CB25915E)

Details
Written by: Newton C. Braga

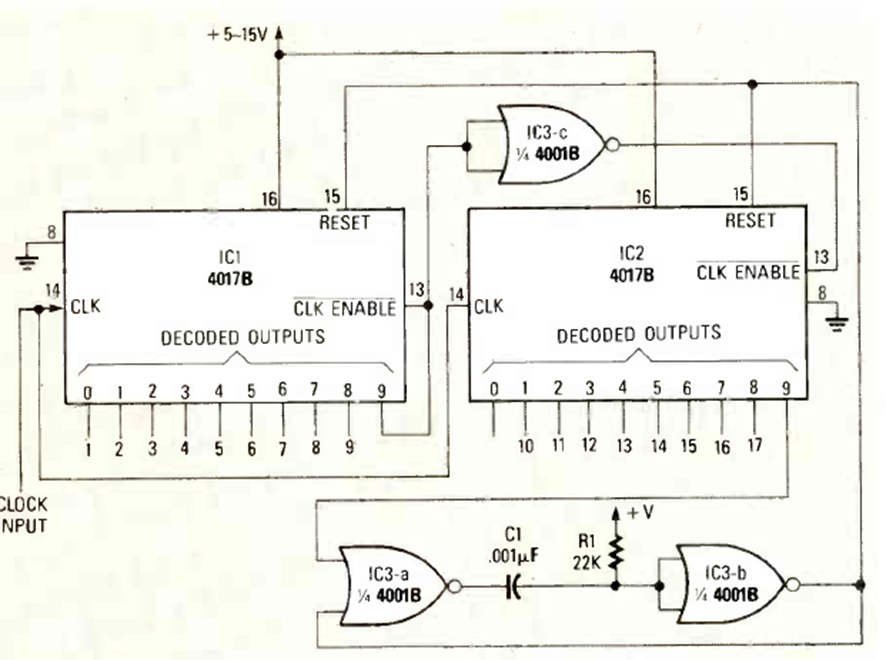

The figure shows how to divide the frequency of a signal by 17 using the 4017. Additional CMOS circuits are required.
