Fourth-order low-pass filter (CB25596E)

Details
Written by: Newton C. Braga

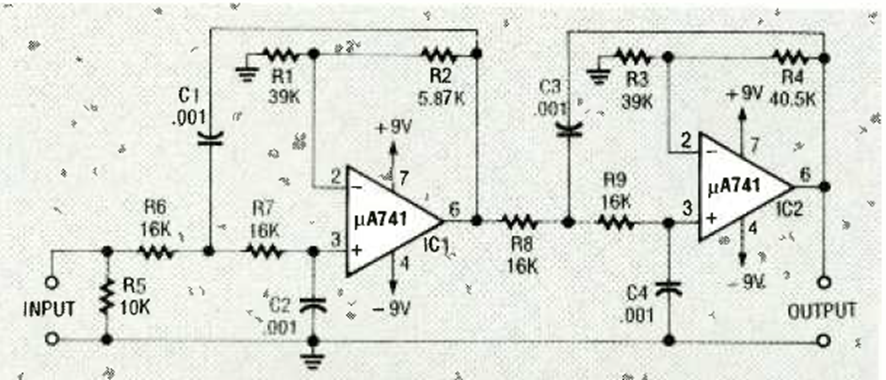

Using two 741 operational amplifiers, this low-pass circuit has a cutoff frequency of 10 kHz. We found it in an article in the magazine Electronics Now from August 1993.
