Latching relay (CB25722E)

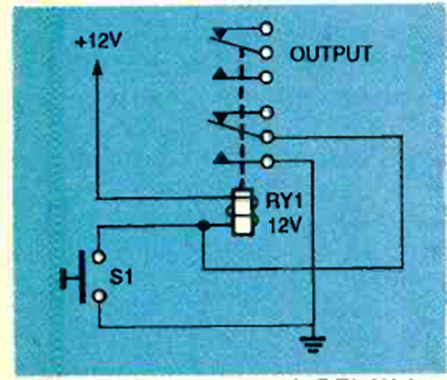

The figure shows how to connect a relay to obtain the latch effect. The circuit is from an Electronics Now from June 1994.
