Low Power Precision VU Meter LM3914 (CB25461E)

Details: Written by: Newton C. Braga

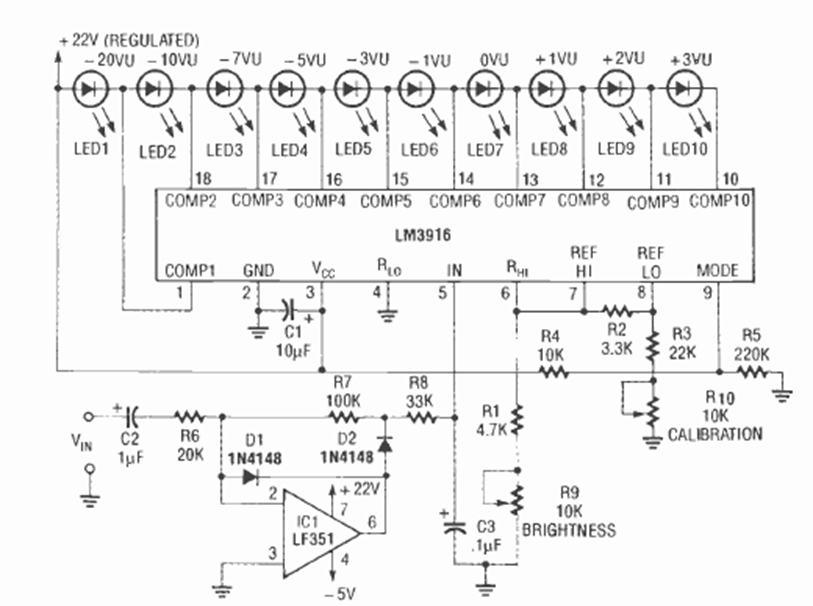

This circuit was found in the March 1992 issue of Radio Electronics magazine. The circuit has several adjustments and uses an operational amplifier. Note the supply voltage.

| Clique na imagem para ampliar |
