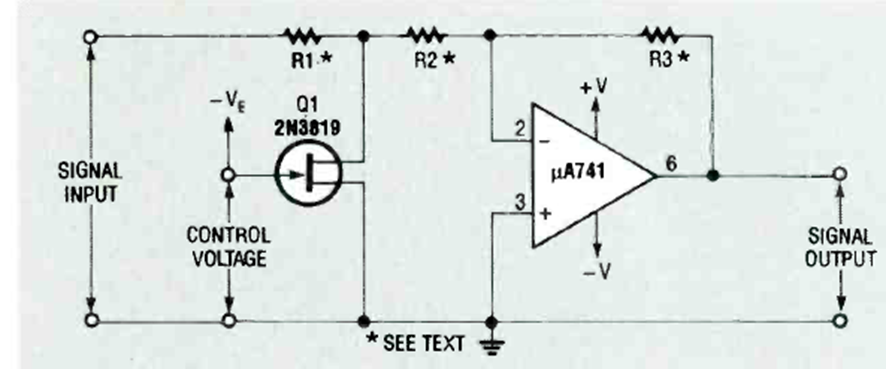

Gain control with 741 and JFET (CB25572E)

This circuit was found in the April 1993 Electronics Now magazine. With it, it is possible to control the gain of an operational circuit with a JFET.

| Clique na imagem para ampliar |
