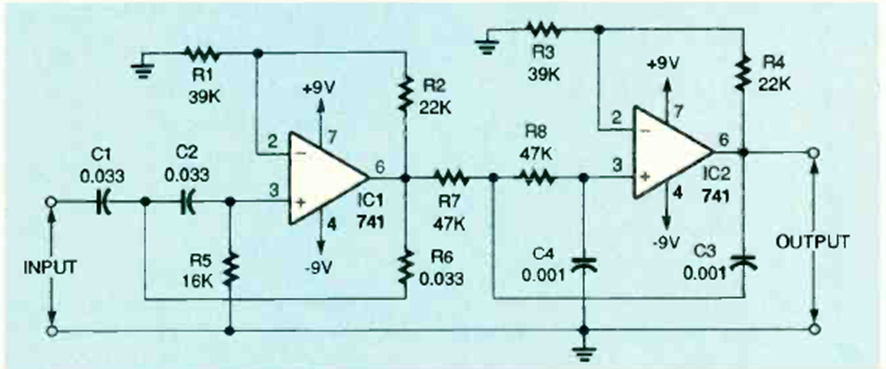

This filter for frequencies from 300 Hz to 3.4 kHz was found in the February 1995 Radio Electronics magazine. Other operational amplifiers can be experimented, and the source must be dual.
| Clique na imagem para ampliar |
Second Order Speech Filter (CB25820E)
- Details
- Written by: Newton C. Braga
