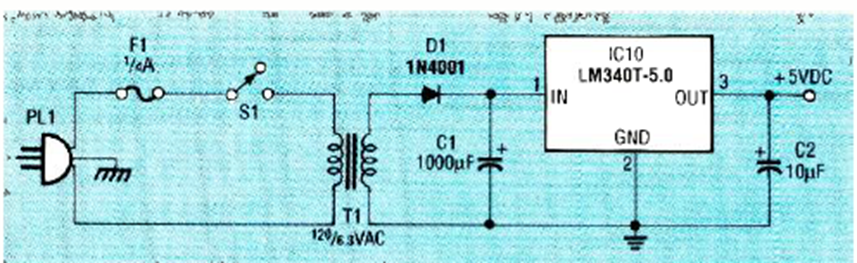

This 5 V power supply was found in the January 1992 issue of Radio Electronics magazine. The integrated circuit must be equipped with a heat sink and the current is 1 A.
| Clique na imagem para ampliar |
5 V Power Supply LM340T-5.0 (CB25418E)
- Details
- Written by: Newton C. Braga
