Universal Preamplifier (CB25699E)

Details
Written by: Newton C. Braga

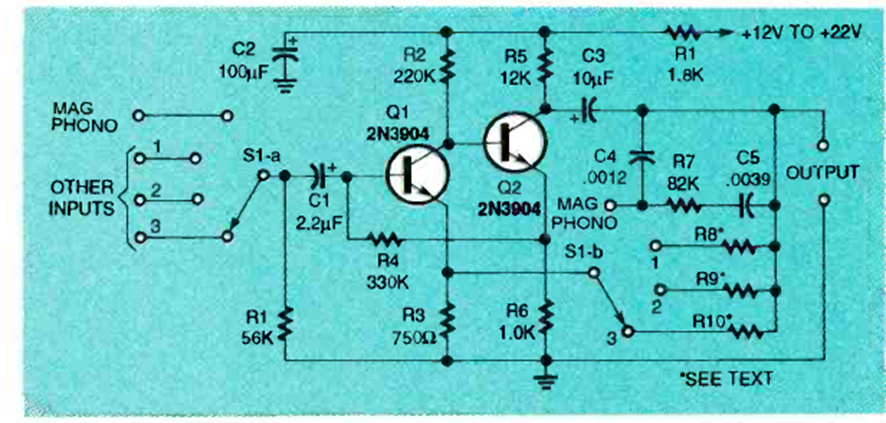

We found this universal preamplifier circuit in a March 1994 Electronics Now. It has several types of equalization depending on the signal input.




| Clique na imagem para ampliar |
