We found this circuit in the April 1993 Electronics Now magazine. Almost any general-purpose JFET can be used. Power is supplied by a battery (2 x 9V).
| Clique na imagem para ampliar |

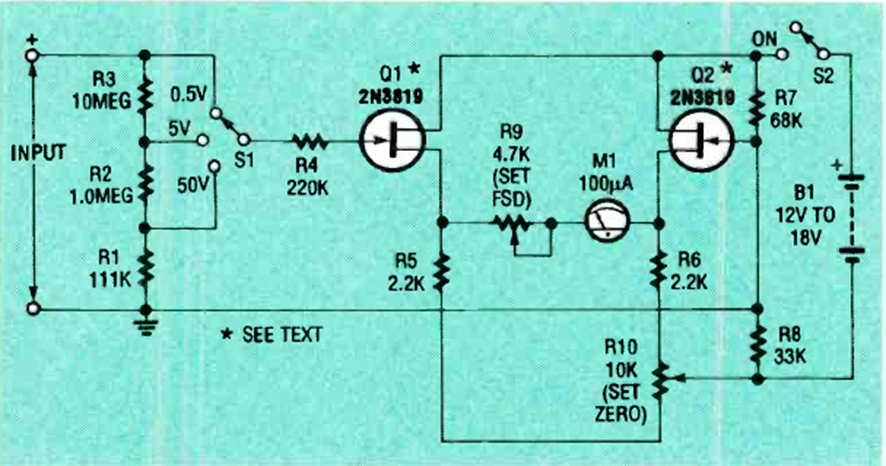

Low Power JFET Voltmeter (CB25571E)
- Details
- Written by: Newton C. Braga
