20 LED Effects Circuit Using 4017 (CB25438E)

Details
Written by: Newton C. Braga

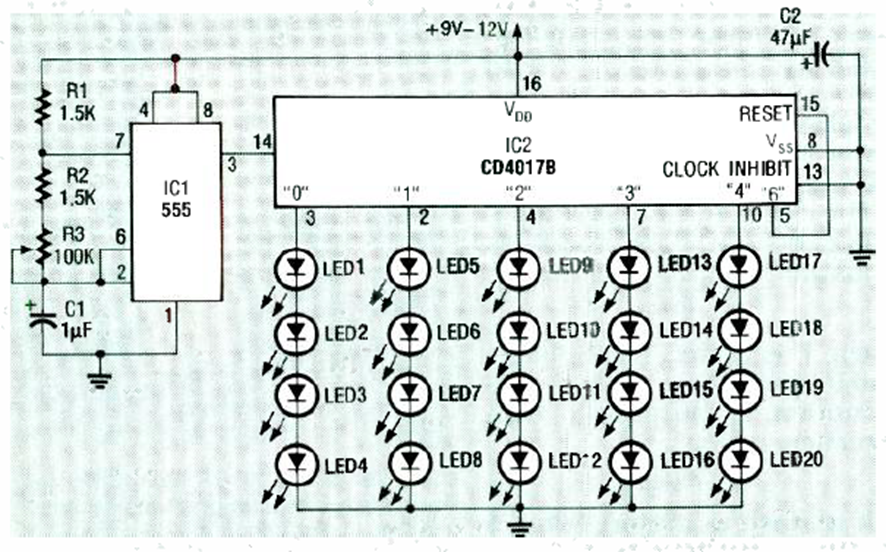

This series LED circuit was found in the February 1992 issue of Radio Electronics magazine. The effect's speed is dependent on C1 and adjusted by R3.
