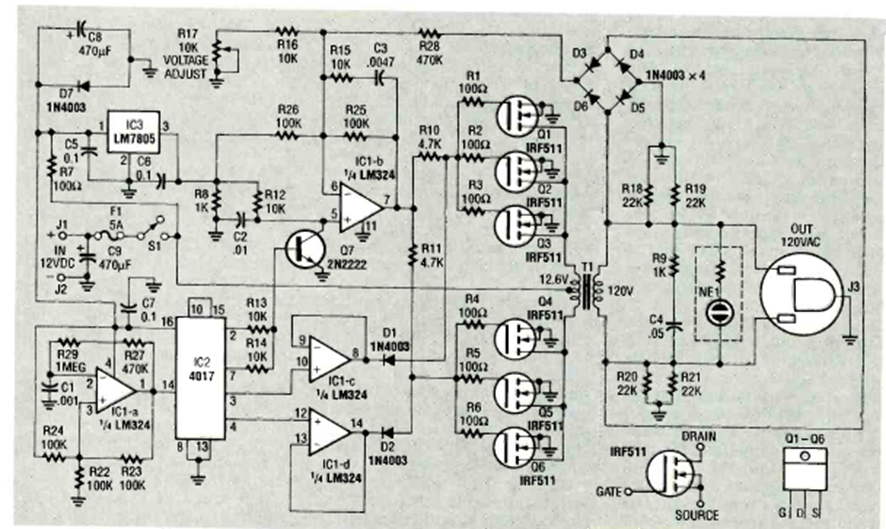

40W Voltage Inverter (CB25375E)

This powerful inverter provides a high-quality sine wave signal. I found it in a Radio Electronics issue from April 1991. The output power is 40W

| Clique na imagem para ampliar |
