LM317 Power Supply (CB25552E)

Details: Written by: Newton C. Braga

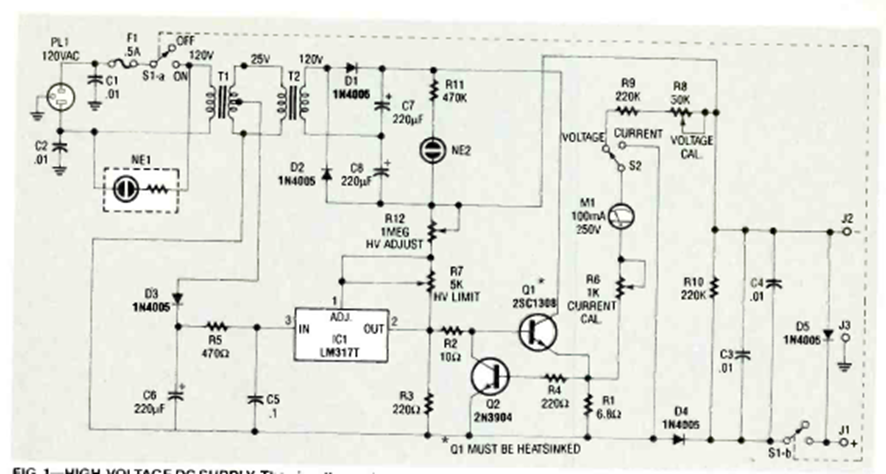

This power supply circuit was obtained from the February 1993 Radio Electronics magazine. The integrated circuit and power transistors must be provided with heatsinks.
