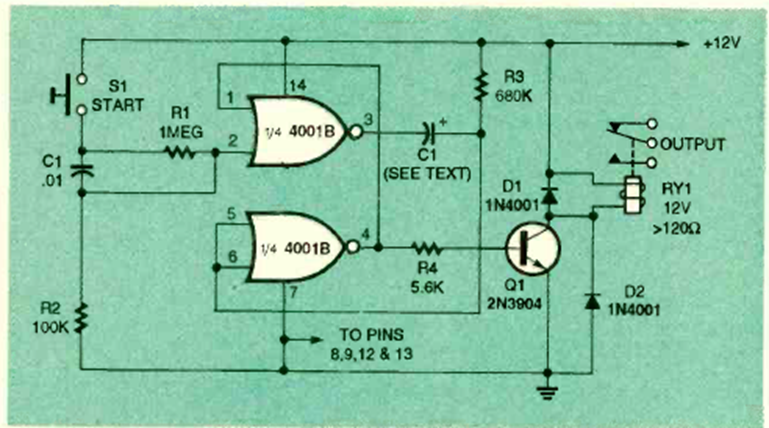

The time of this timer depends on C1. The circuit was found in the July 1994 Electronics Now magazine. The supply voltage depends on the relay and can go up to 12 V.
| Clique na imagem para ampliar |
Single Shot Timer 4001 (CB25744E)
- Details
- Written by: Newton C. Braga
