Light Beam Alarm (CB25487E)

Details
Written by: Newton C. Braga

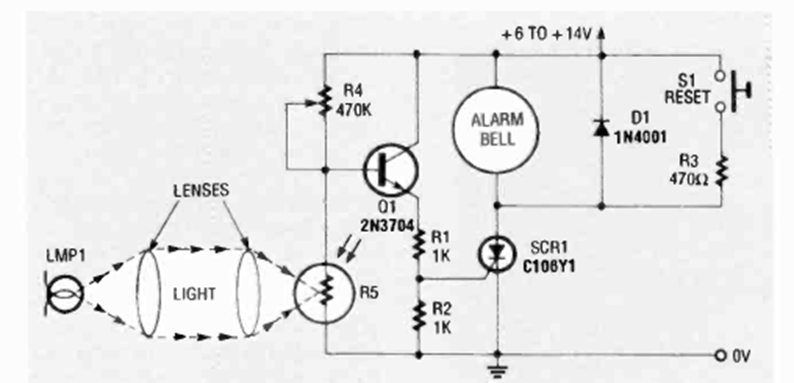

We found this circuit in the July 1992 issue of Radio Electronics magazine. An optical system produces the light beam that, when interrupted, triggers the alarm. The sensitivity is adjusted by R4.
