4046 Alarm Clock (CB25768E)

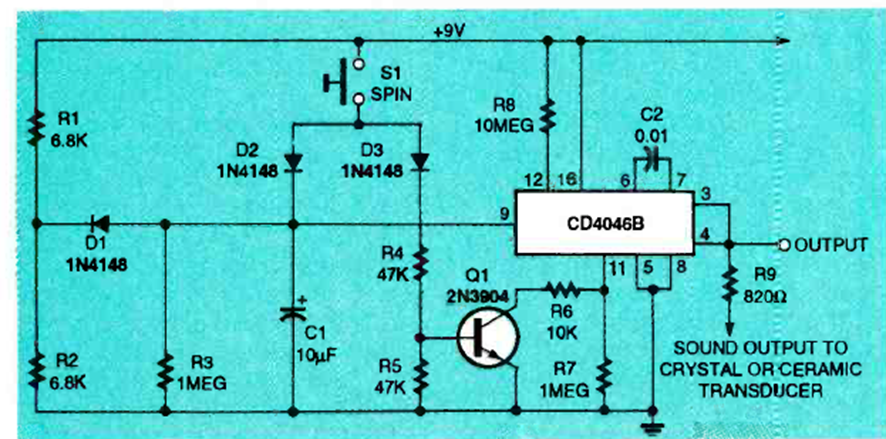

This circuit uses a PLL4046 oscillator to excite a piezoelectric ceramic. The circuit is from an October 1994 Electronics Now magazine.
