Monochrome Pattern Generator (CB25396E)

Details
Written by: Newton C. Braga

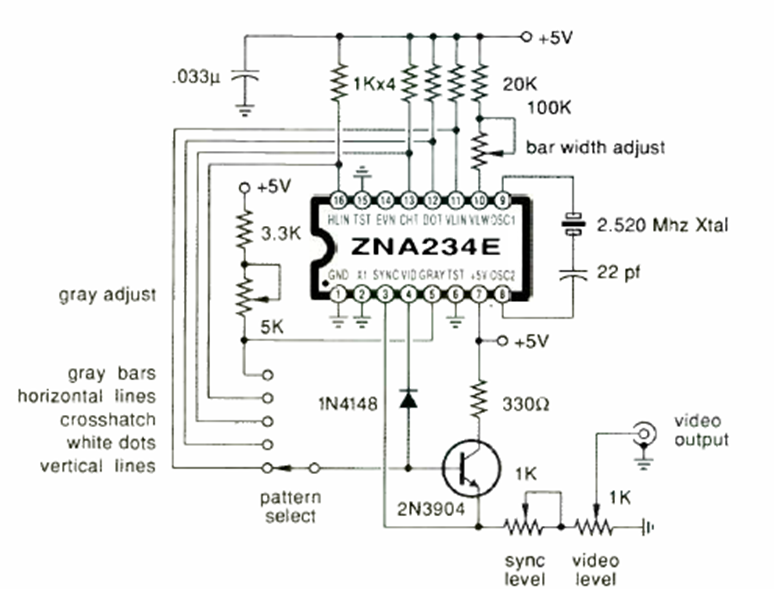

This monochrome analog TV pattern generator was found in the July 1991 issue of Radio Electronics magazine. The circuit generates a voltage that must be applied to a modulator.




| Clique na imagem para ampliar |
