High Performance Residential Alarm (CB25951E)

Details
Written by: Newton C. Braga

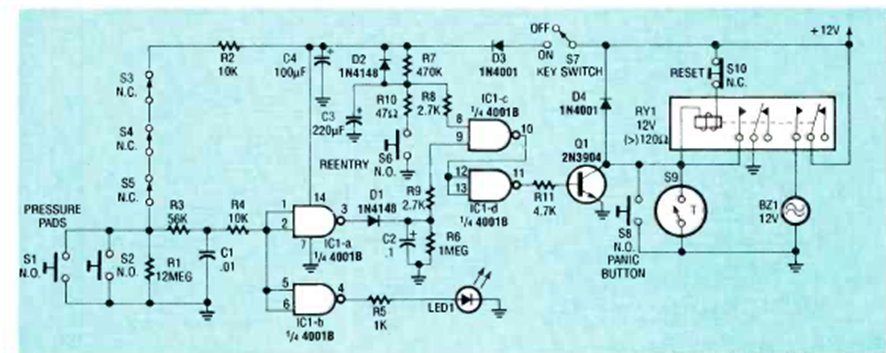

We found this circuit in the May 1990 issue of Radio Electronics magazine. The circuit is powered by the relay used and uses both normally open and normally closed sensors.




| Clique na imagem para ampliar |
