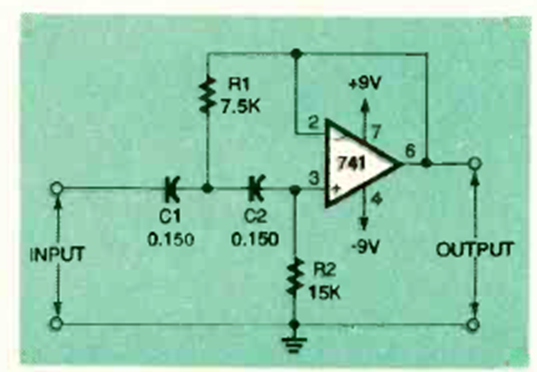

Second Order Unity Gain Filter (CB25817E)

Using a 741 op-amp this circuit high-pass to 10 kHz was found in the February 1995 issue of Electronics Now magazine. The power supply must be dual.
