BCD to Analog Converter (CB25395E)

Details
Written by: Newton C. Braga

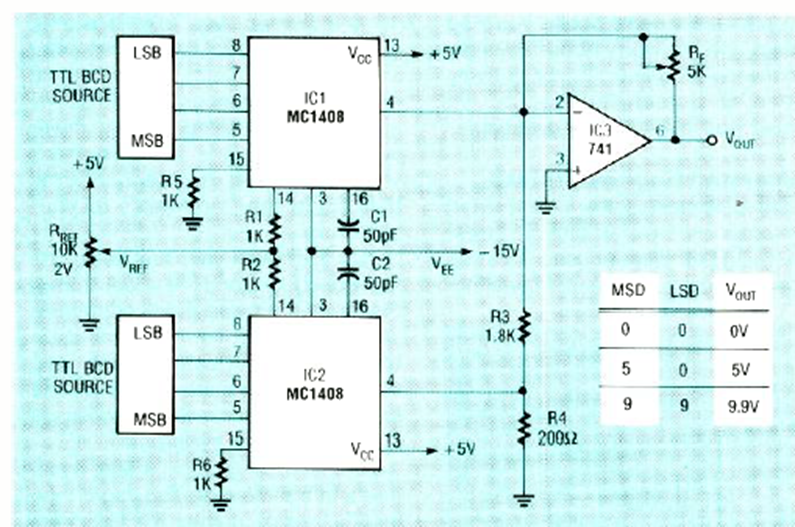

This interesting circuit converts BCD signals into a voltage that can be used in an analog application. The circuit was found in the July 1991 issue of Radio Electronics magazine.
