Two-Digit Counter CIR25397S CB25373E (CB25373E)

Details
Written by: Newton C. Braga

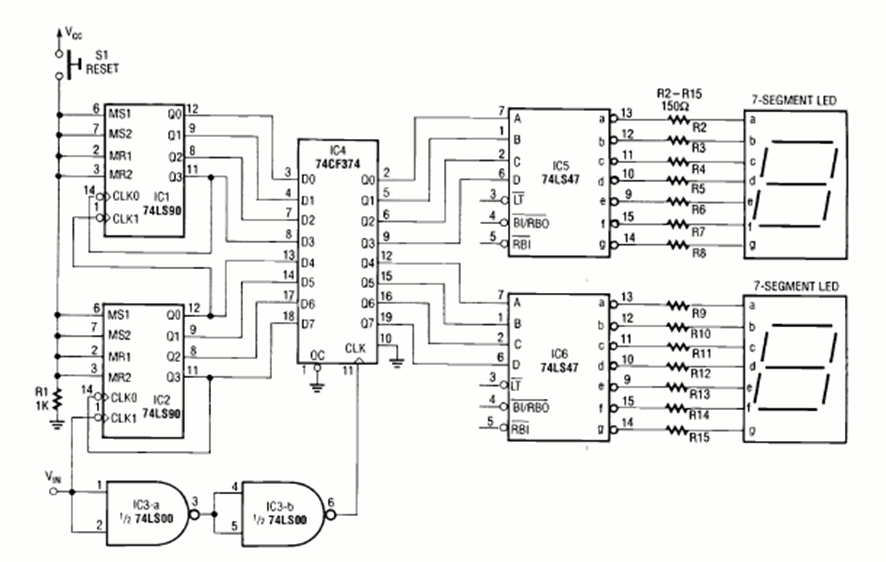

This TTL counter was found in the March 1991 issue of Radio Electronics magazine. The circuit is part of a larger project and must be powered by a 5V voltage.
