Fourth-Order Low Pass Filter (CB25816E)

Details
Written by: Newton C. Braga

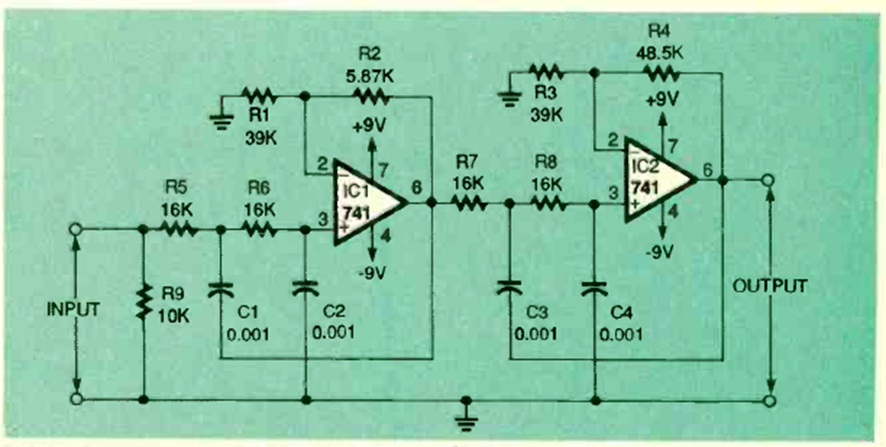

This 10 kHz filter was obtained from an article in Electronics Now magazine in February 1995. The power supply is dual and other equivalent operating conditions can be used.
