555 Voltage Quadrupler (CB25838E)

Details
Written by: Newton C. Braga

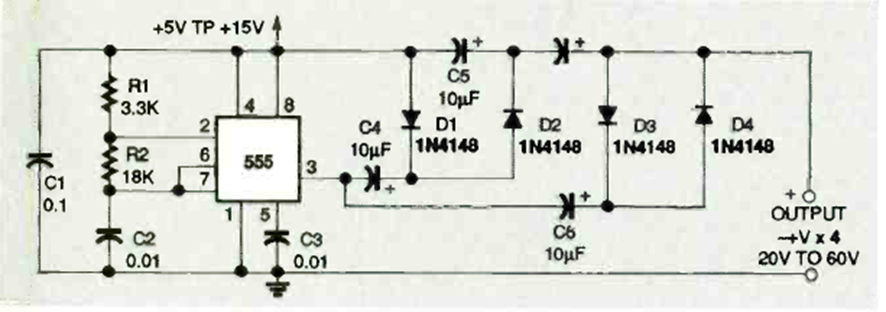

The output voltage of this circuit is approximately four times the supply voltage. The circuit is from an Electronics Now April 1995. The output current is very low.




| Clique na imagem para ampliar |
