Voltage Tripler (CB25544E)

Details
Written by: Newton C. Braga

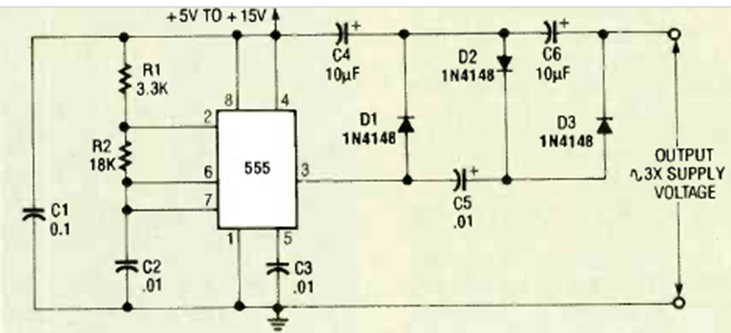

This circuit multiplies the input voltage by 3 and can work with up to 12 V input. The current is a few mA. We found it in the Radio Electronics magazine of December 1992.




| Clique na imagem para ampliar |
