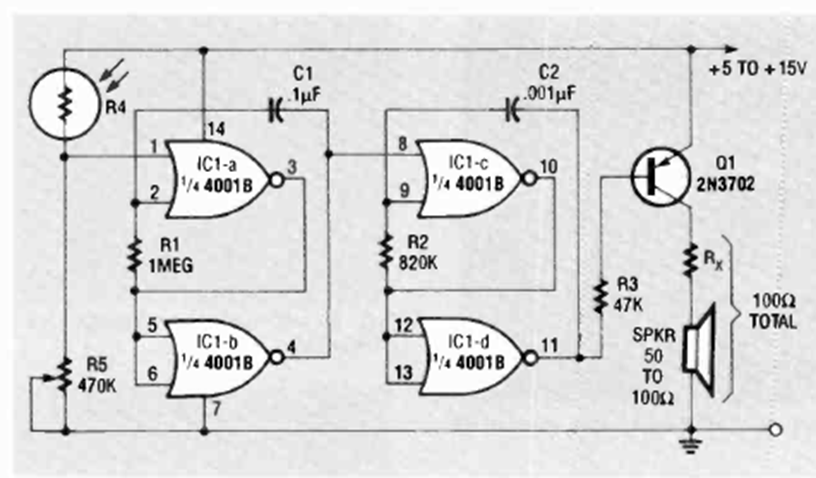

This alarm circuit was found in the July 1992 Radio Electronics magazine. The circuit uses a small power stage for the speaker and has the sensitivity adjustment at R5.
| Clique na imagem para ampliar |
Shadow Alarm with Intermittent Sound (CB25483E)
- Details
- Written by: Newton C. Braga
