Sophisticated Regenerative Receiver (CB25691E)

Details
Written by: Newton C. Braga

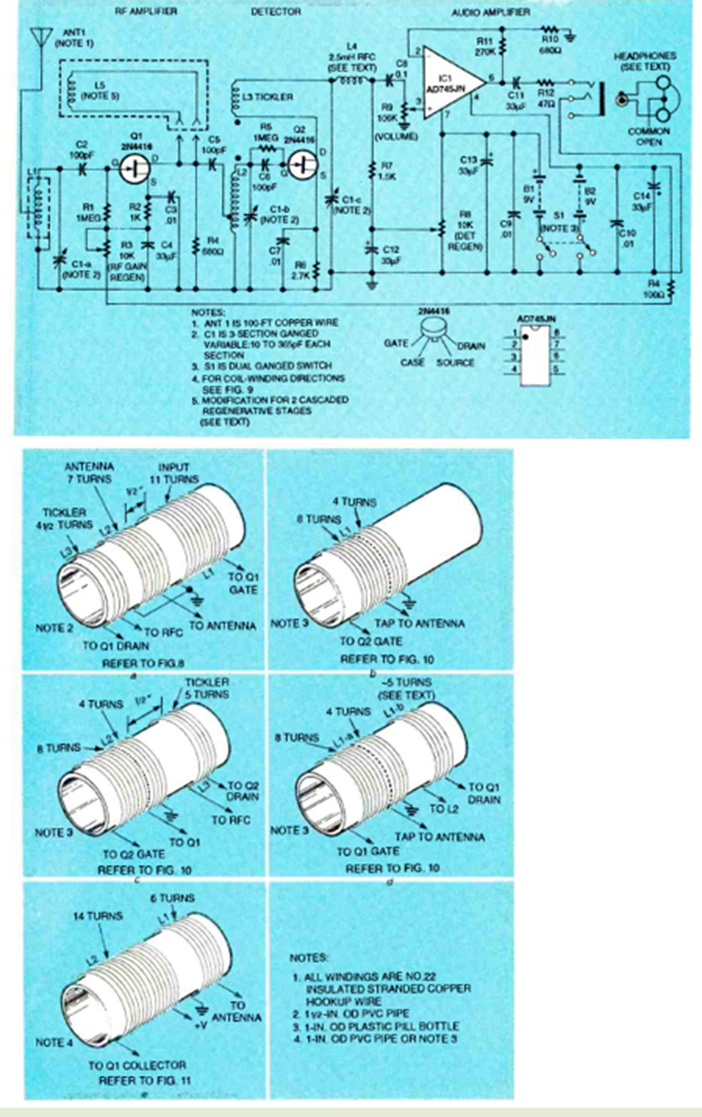

This receiver was found in an article in Electronics Now magazine in March 1994. The coils are critical, as shown in the figure. Listening is through headphones.
