Wheatstone Bridge (CB25887E)

Details
Written by: Newton C. Braga

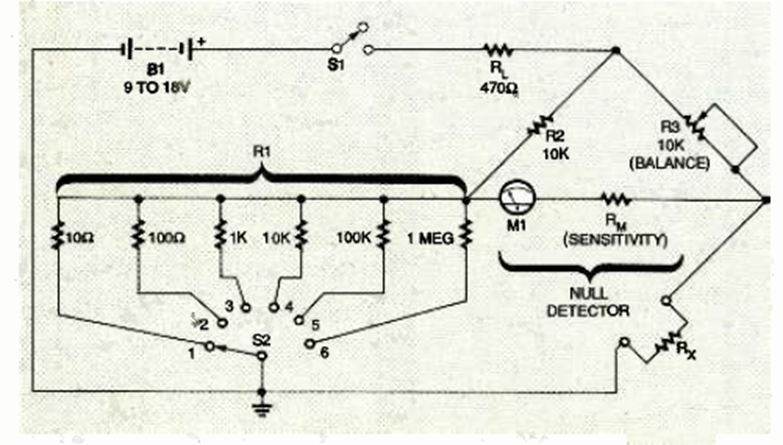

We found this circuit in the September 1995 issue of Electronics Now magazine. The circuit has 6 scales for resistance measurements and uses an analog indicator from 50 uA to 1 mA.
