Alternator Voltage Regulator (CB6375E)

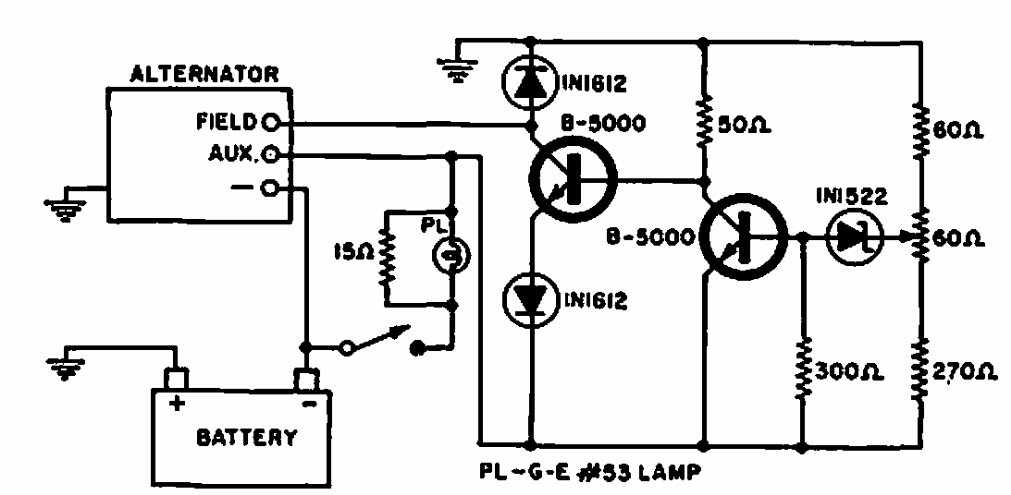

This circuit was found in an Electronic World of 1968. The circuit uses power transistors of the time. The transistors are for 25 W of dissipation.

| Clique na imagem para ampliar |

Relay Drive AC Stage (CB12182E)
With this circuit, a relay can be activated from an alternating signal with frequency up to a few...
Visually Impaired Electronic Guide (CB18123E)
With this circuit the visually impaired can easily locate important places inside the house, such...
Schmitt trigger (CB21475E)
In the figure we have the way to use the transistors of an old-paired pair as a trigger circuit. The...
