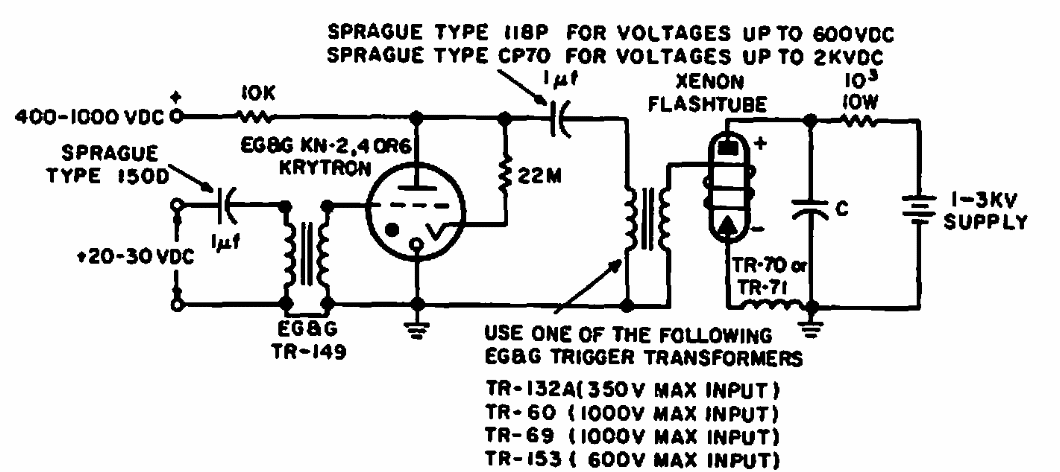

LASER triggering with Krytron (CB7229E)

This 1968 EC&G circuit generates high voltage pulses for firing a gas LASER of the time. The components are rare nowadays.

| Clique na imagem para ampliar |
