Dual control with AC signal (CB732

Details
Written by: Newton C. Braga

1E)

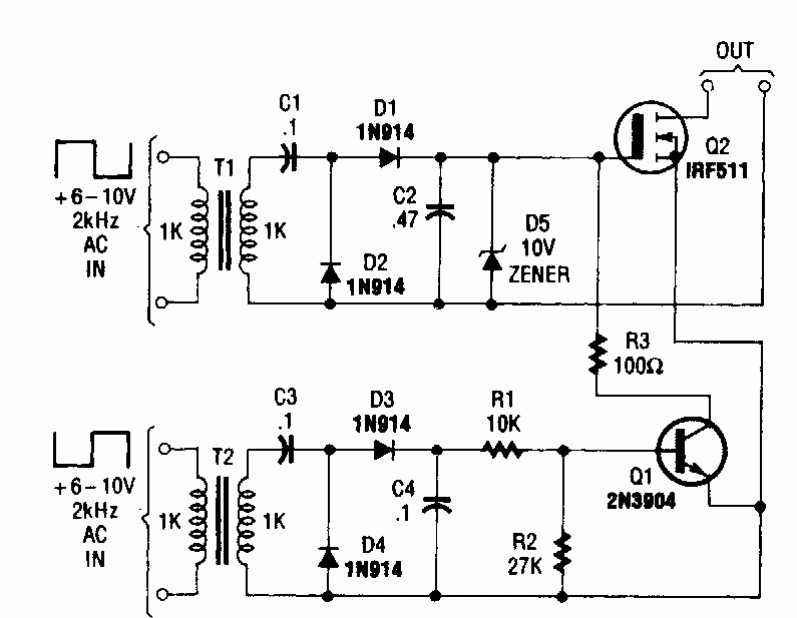

     This circuit was found in a Popular Electronics from the 90s. The circuit generates different control signals over the same line. The transistors are from the era.




| Clique na imagem para ampliar |
