AC motor driver with reversal (CB7150E)

Details
Written by: Newton C. Braga

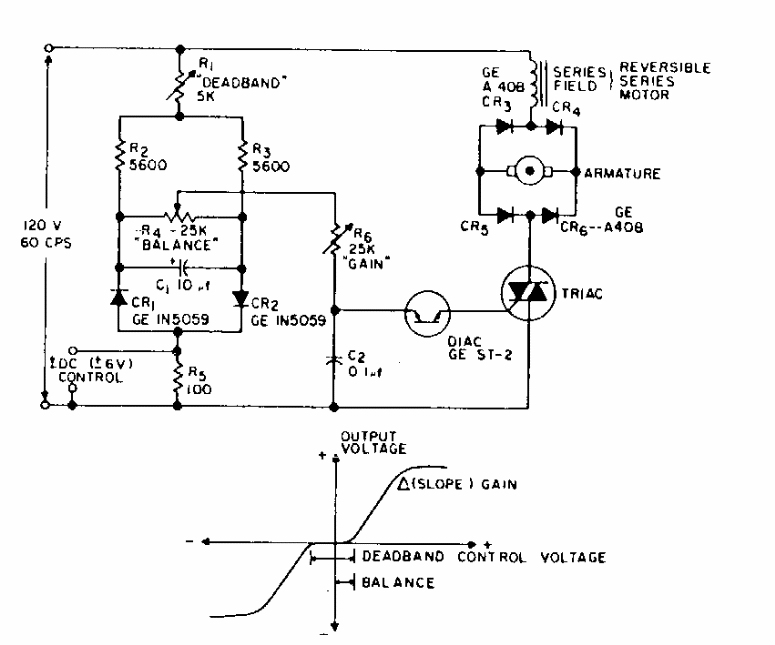

     Suggested by General Electric, this circuit with triac is able to reverse the rotation of a motor through a DC control signal. The circuit applies to AC servos.
