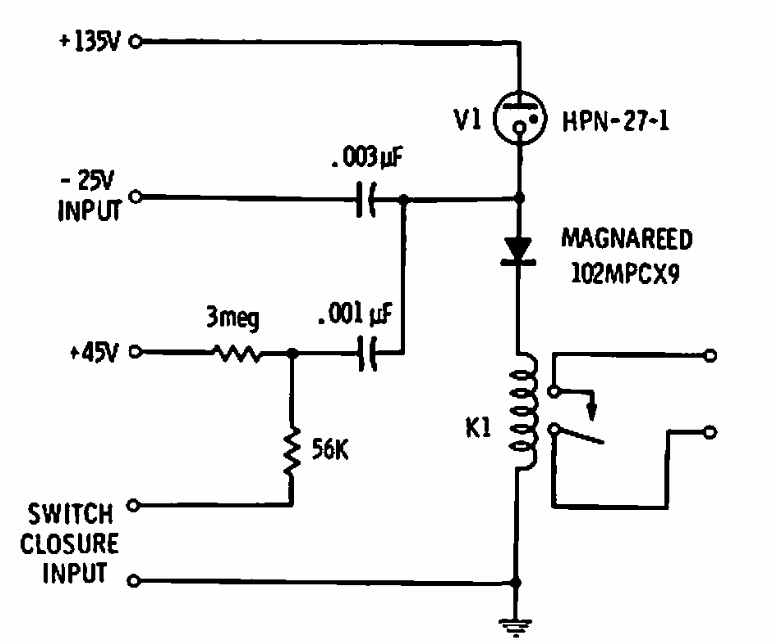

'Push button memory (CB7243E)

This circuit was found in an American documentation from 1969. The circuit memorizes when a command pulse activates the relay.

| Clique na imagem para ampliar |
