Hearing Aid Amplifier (CB6161E)

Details
Written by: Newton C. Braga

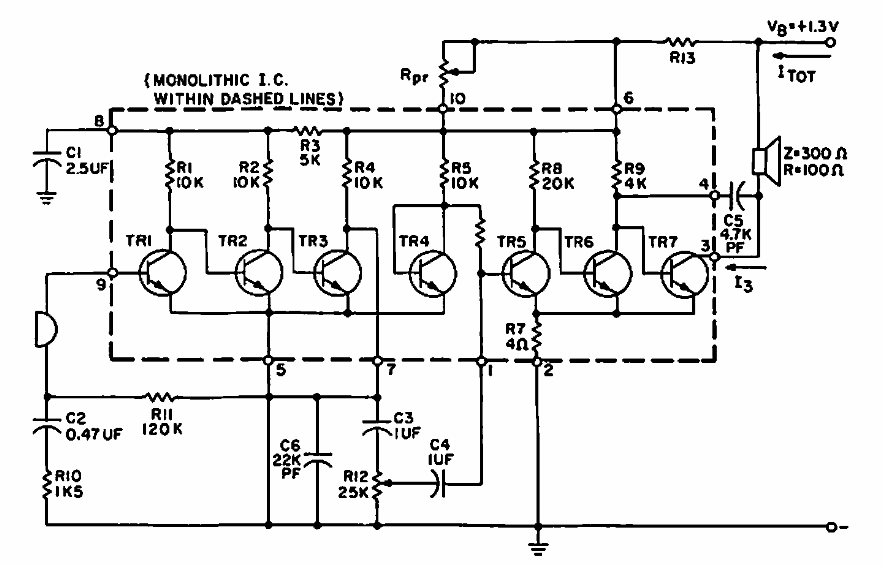

    This circuit is from a 1968 documentation using one of the first integrated circuits available at the time, the TAA370. The circuit is powered by 1.3 V using a 200 ohm handset.
