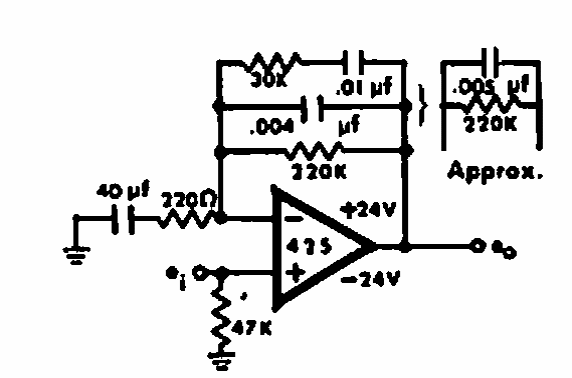

RIAA Equalization (CB6317E)

Details
Written by: Newton C. Braga



     The operational amplifier used on this 1968 circuit is not common today. However, the setting can be used with modern equivalent operating systems. The power supply must be symmetrical according to the operational.
