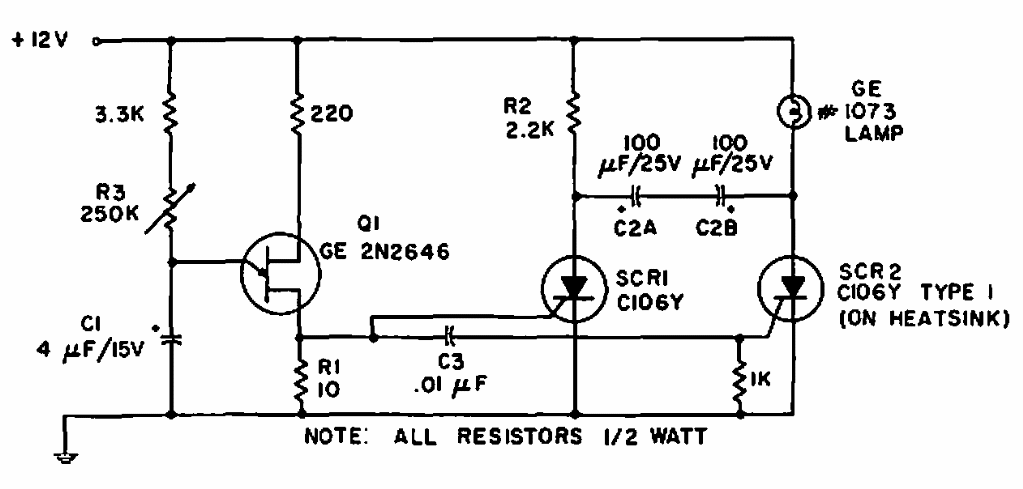

Barricade Flasher C (CB6766E)

Details
Written by: Newton C. Braga



    This circuit was obtained from a 1967 General Electric manual. The circuit makes use of absolutely current components. Similar versions from other sources can be found in this section.
