High power triac control (CB7186E)

Details
Written by: Newton C. Braga

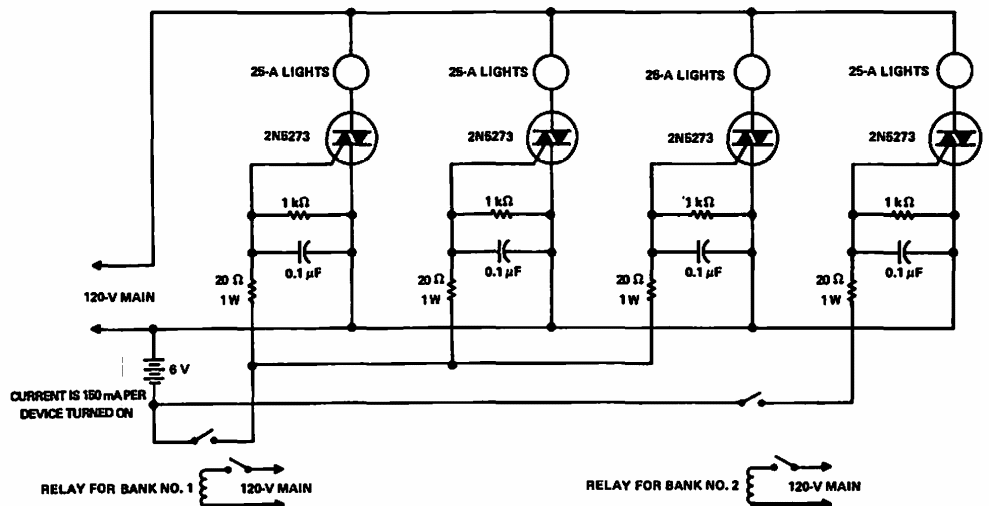

     This circuit is from a Texas Instruments manual from 1968 but can be applied to current controls using modern Triacs. The circuit is for a current of 25 A per triac.




| Clique na imagem para ampliar |
