Diode test (CB7276E)

Details
Written by: Newton C. Braga

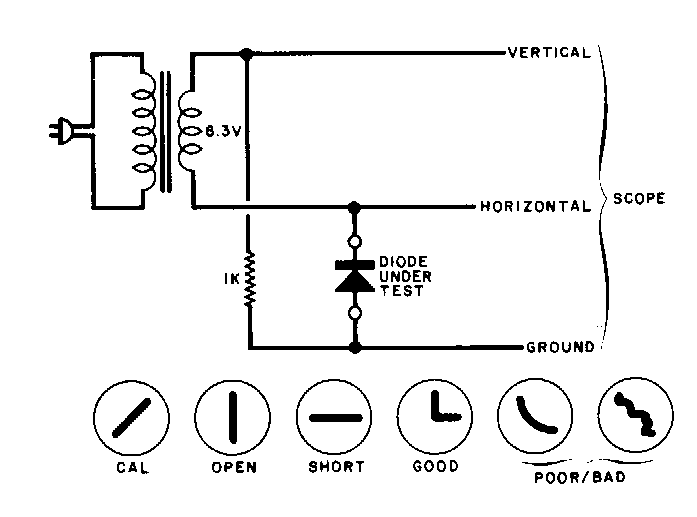

     With this circuit of a Popular Electronics from the 90's it is possible to test a diode with the oscilloscope visualizing its characteristic curve. The transformer can have currents starting from 100 mA.




| Clique na imagem para ampliar |
