Gas LASER Supply (CB7227E)

Details
Written by: Newton C. Braga

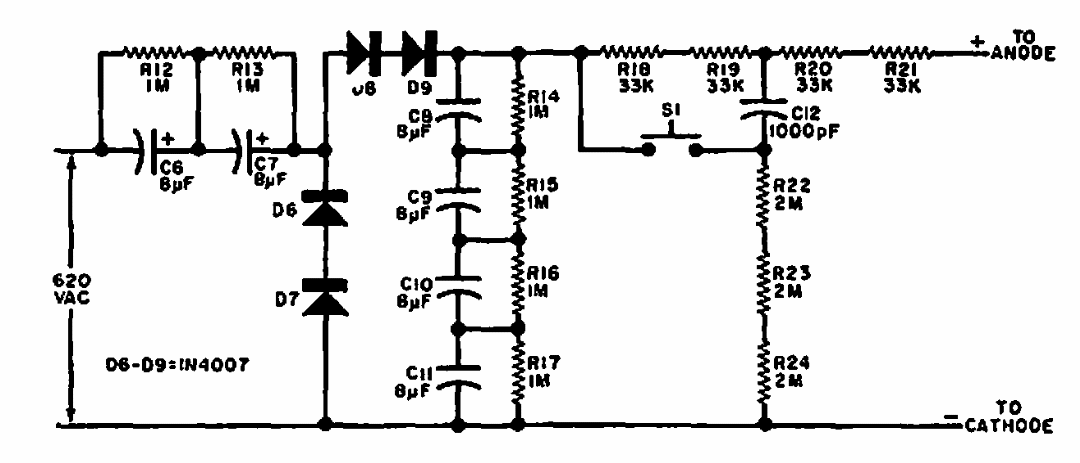

     This circuit found in 1969 Popular Electronics is used to power a gas laser. The circuit produces a continuous voltage of 1,600 V. Diodes are high voltage types.
