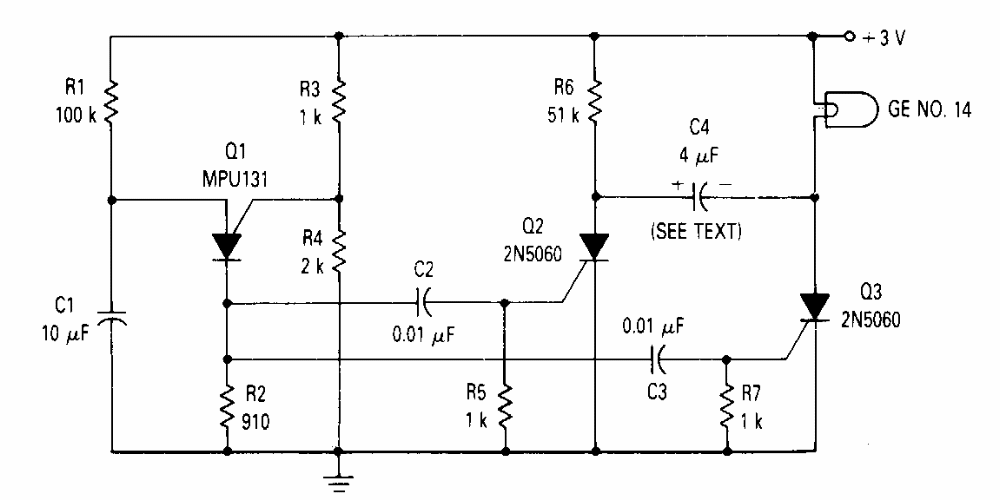

Low Voltage Flasher (CB6250E)

Details
Written by: Newton C. Braga



    This circuit was found in Motorola documentation from the 1980s. PUTs are not common components today and lamp power depends on the SCR.




| Clique na imagem para ampliar |
