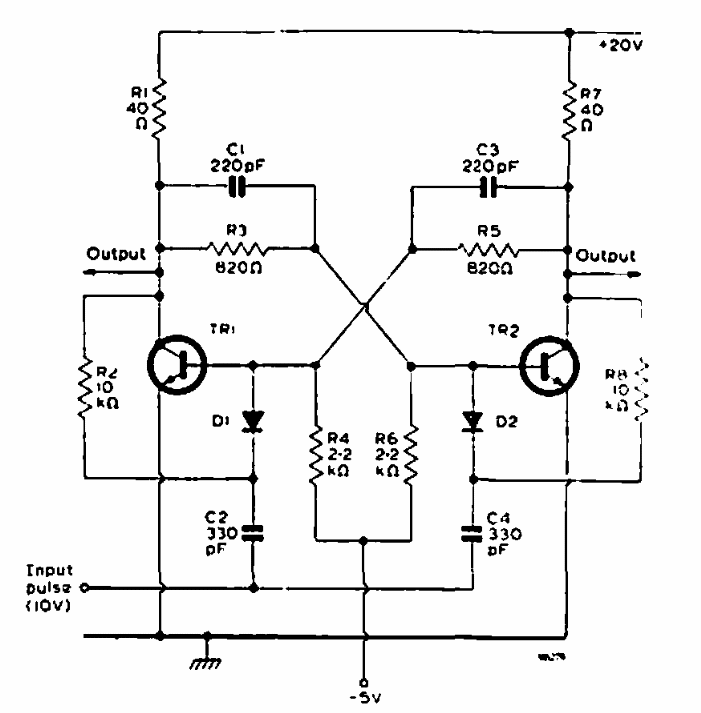

Suggested by a 1968 Philips documentation this Eccles Jordan rocker as it was called can operate at frequencies up to 100 kHz. The circuit is powered by relatively high voltage and the general-purpose transistors of the time.
