Low frequency linear modulator (CB7305E)

Details
Written by: Newton C. Braga

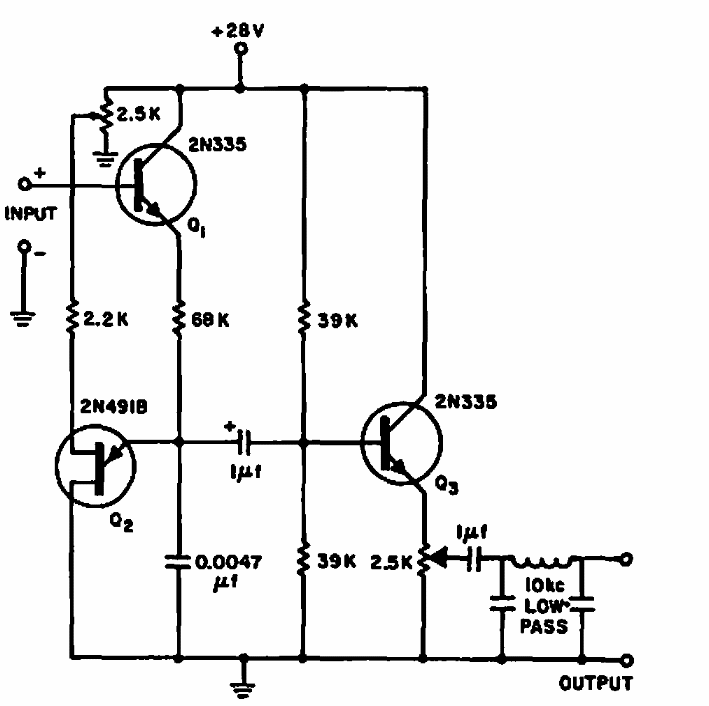

     Found in an Electronic Design from 1968 this circuit generates a linear sawtooth signal modulated by an input signal. The transistors are from the era.
