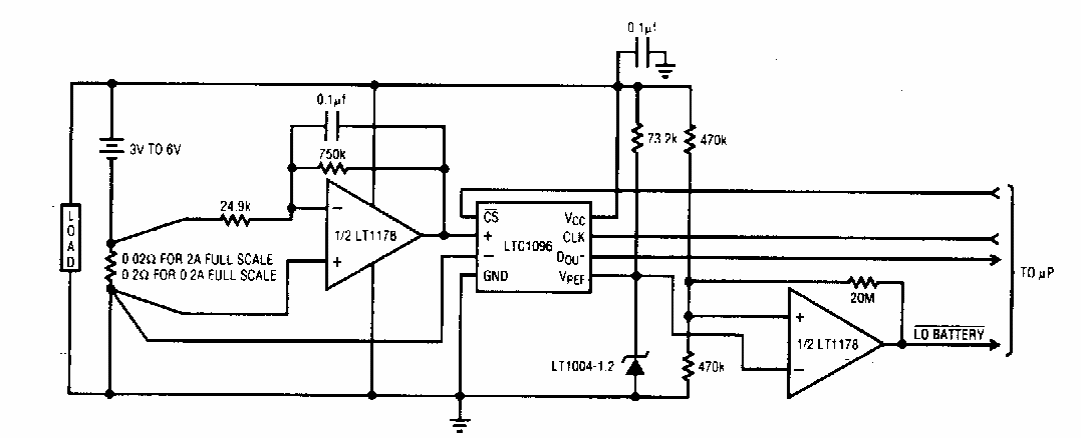

Current monitor with digital output (CB7275E)

Details
Written by: Newton C. Braga



    Found in Linear Technology documentation, this circuit drains only 70 uA of the monitored circuit. The components used are from that time.
