12V x 40W Flasher (CB6765E)

Details
Written by: Newton C. Braga

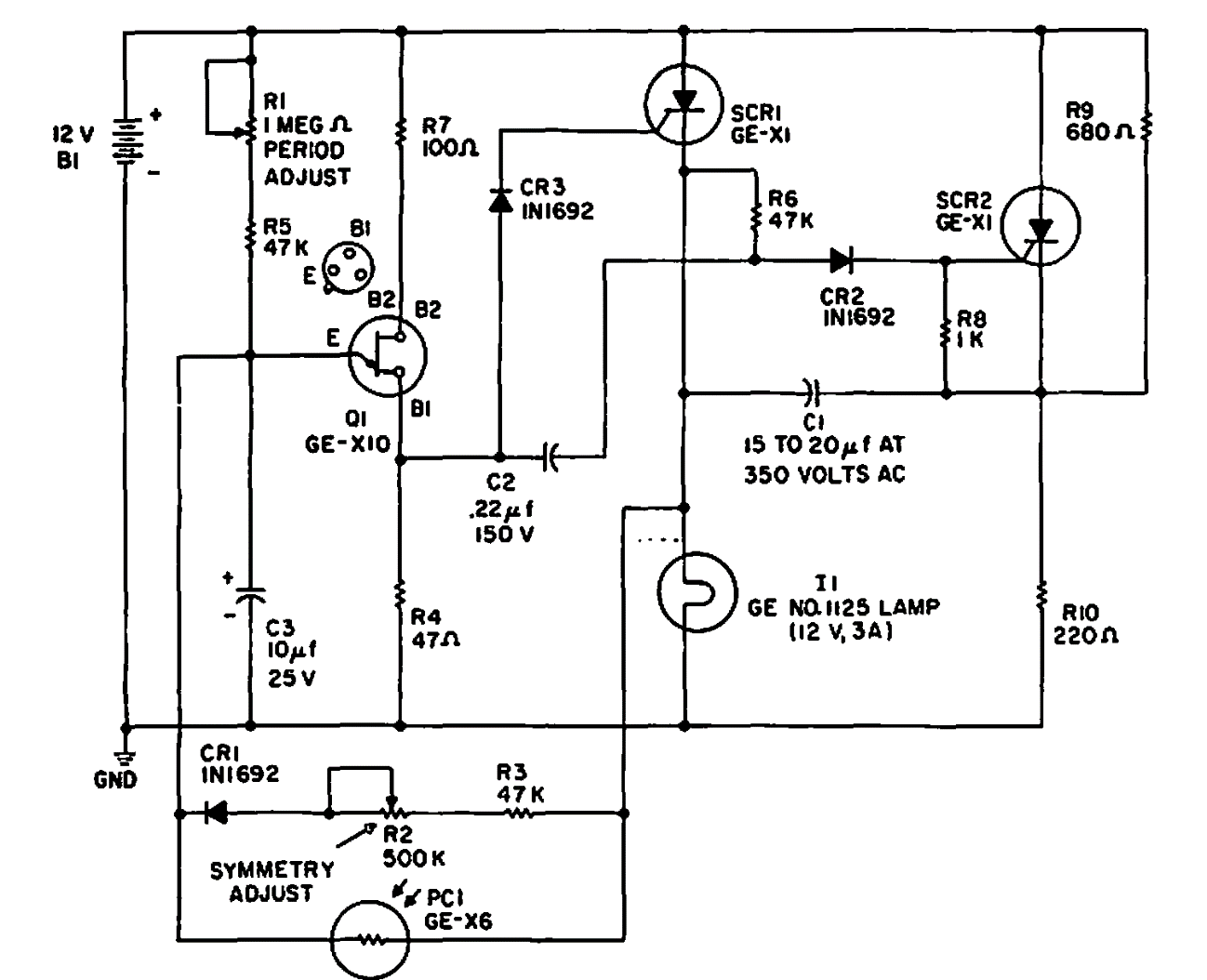

    This circuit was found in a 1965 General Electric documentation. SCRs and unijunction may be current equivalents. The circuit has period adjustment and symmetry.
