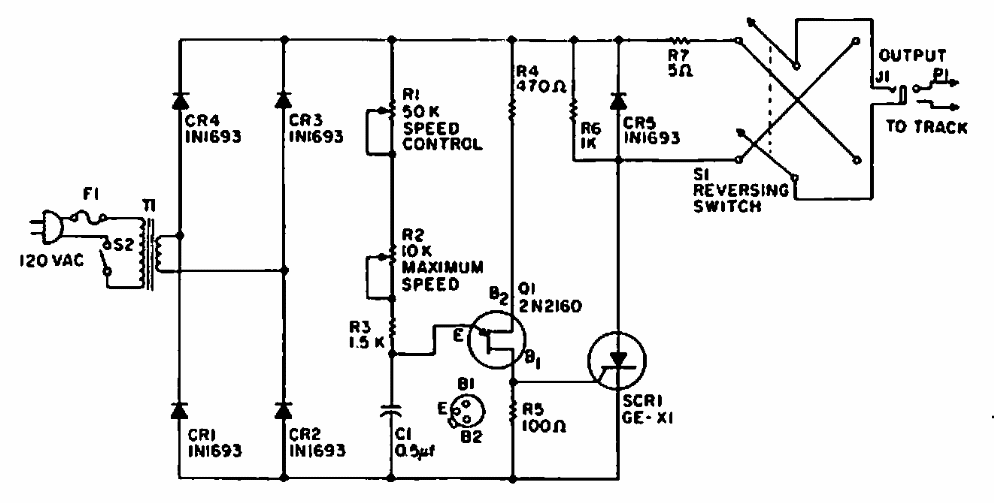

Suggested by General Electric in a 1965 documentation, this circuit can use the TIC106 as an SCR. The transformer is 1.2 A and voltage is 25 V. Other versions are given in this section from other sources.
| Clique na imagem para ampliar |
Control for miniature railway (CB7085E)
