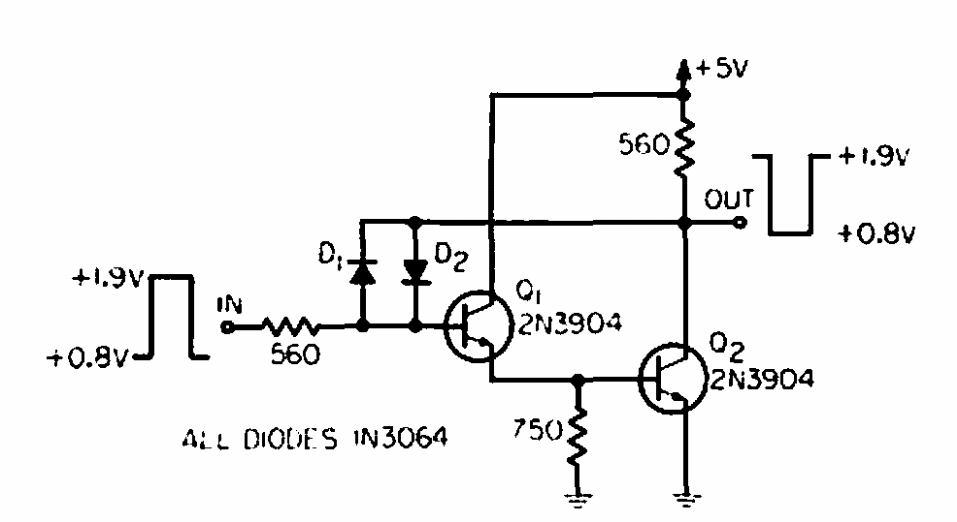

This circuit was found in a 1968 EEE and can be implemented with any current general-purpose transistor. The circuit inverts the pulse level, operating at 5 V, which makes it a shield for microcontrollers.
| Clique na imagem para ampliar |
Pulse inverter (CB7256E)
- Details
- Written by: Newton C. Braga
