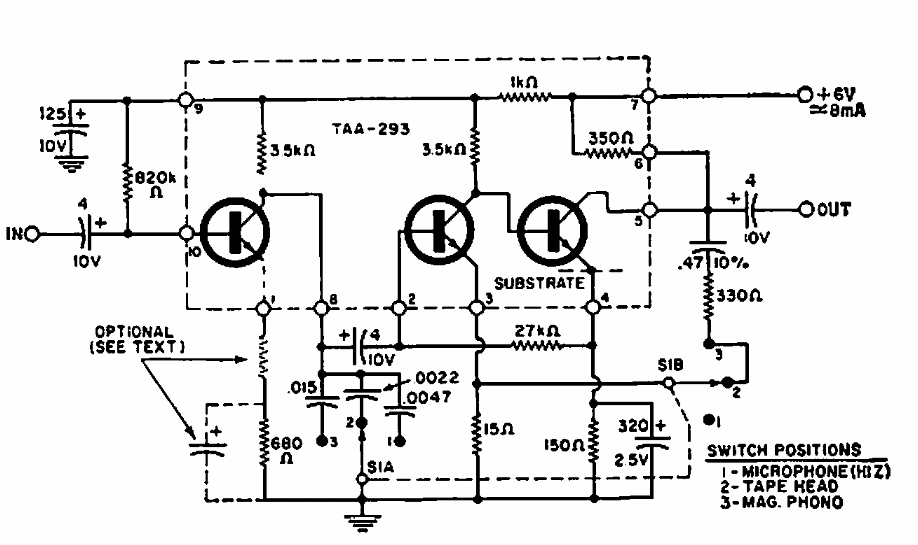

Old Integrated Amplifier (CB6159E)

This 1967 General Electric circuit makes use of an array of 3 (integrated) transistors for an amplifier stage. The circuit has a 500 mV output.

| Clique na imagem para ampliar |
